FastVideo Architecture Overview

This document summarizes how FastVideo is structured and how a Diffusers-style model repo maps into a runnable pipeline. It is intended for contributors who need the high-level layout and key entrypoints, not every internal detail.

FastVideo structure at a glance

FastVideo maps a Diffusers-style repo into a pipeline like this:

  • fastvideo/models/*: model implementations (DiT, VAE, encoders, upsamplers).
  • fastvideo/configs/models/*: arch configs and param_names_mapping for weight name translation.
  • fastvideo/configs/pipelines/*: pipeline wiring (component classes + names).
  • fastvideo/configs/sample/*: default runtime sampling parameters.
  • fastvideo/pipelines/basic/*: end-to-end pipelines.
  • fastvideo/pipelines/stages/*: reusable pipeline stages.
  • fastvideo/models/loader/*: component loaders for Diffusers-style repos.
  • model_index.json: HF repo entrypoint mapping component names to classes.

Flow: model_index.json -> component loaders -> model modules -> pipeline stages -> sampling params.

Minimal usage (from examples/inference/basic/basic.py):

from fastvideo import VideoGenerator
from fastvideo.configs.sample import SamplingParam

model_id = "Wan-AI/Wan2.1-T2V-1.3B-Diffusers"  # or official_weights/<model_name>/
generator = VideoGenerator.from_pretrained(model_id, num_gpus=1)

sampling = SamplingParam.from_pretrained(model_id)
sampling.num_frames = 45
video = generator.generate_video(
    "A vibrant city street at sunset.",
    sampling_param=sampling,
    output_path="video_samples",
    save_video=True,
)

Configuration system

FastVideo uses typed configs to keep model definitions, pipeline wiring, and runtime parameters consistent:

  • fastvideo/configs/models/: architecture definitions, layer shapes, and param_names_mapping rules for key renaming.
  • fastvideo/configs/pipelines/: pipeline wiring and required components.
  • fastvideo/configs/sample/: default sampling parameters (steps, frames, guidance scale, resolution, fps).
  • fastvideo/registry.py: unified registry for pipeline config + sampling defaults and model metadata resolution, defined via explicit register_configs(...) blocks (no separate dict registries).

FastVideoArgs (in fastvideo/fastvideo_args.py) provides runtime settings and is passed into pipeline construction and stages.

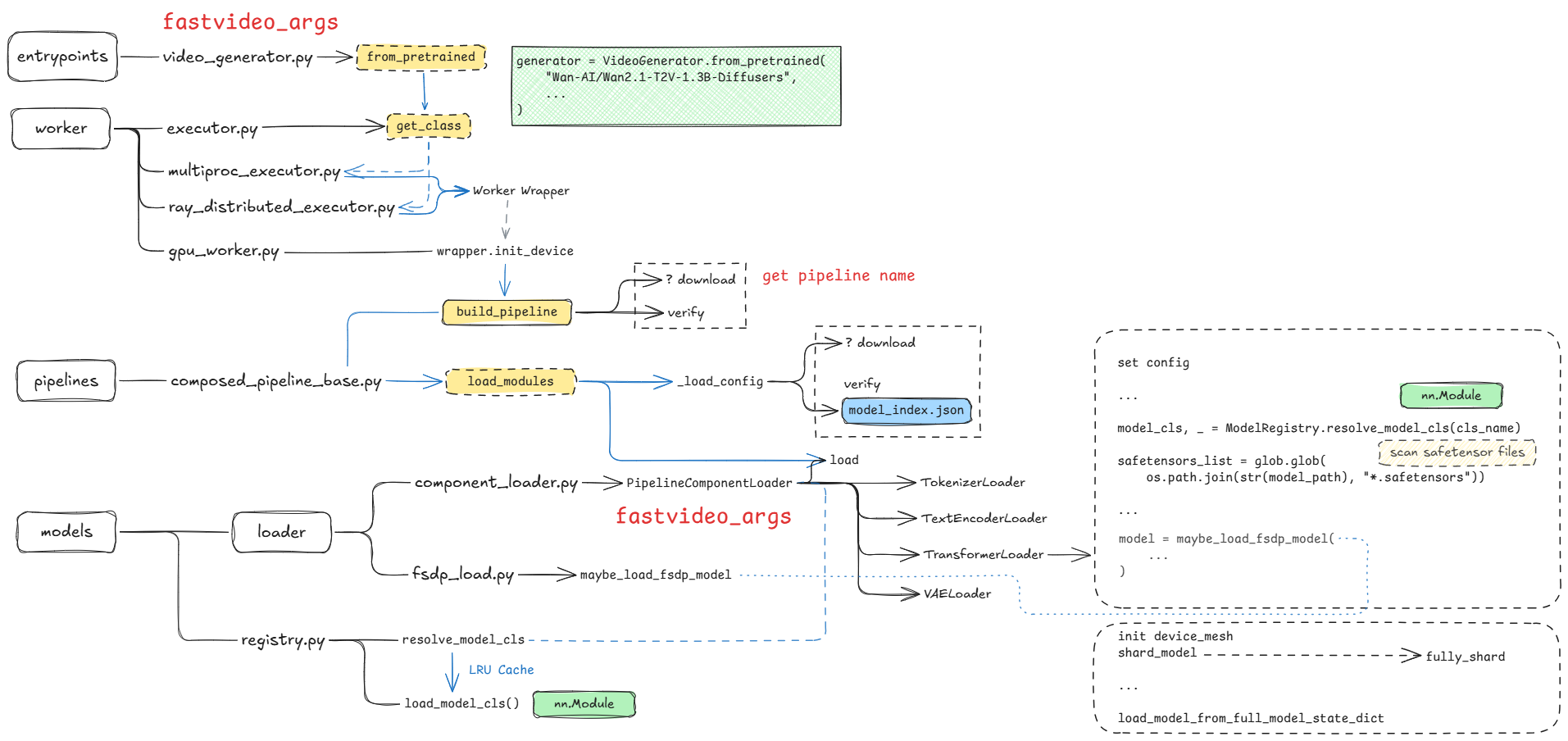

Weights and Diffusers format

FastVideo follows the HuggingFace Diffusers repo layout. This keeps loaders compatible with HF repos and makes it easy to add new components.

Typical Diffusers repo:

<model-repo>/
  model_index.json
  scheduler/
    scheduler_config.json
  transformer/               # or unet/ for image models
    config.json
    diffusion_pytorch_model.safetensors
  vae/
    config.json
    diffusion_pytorch_model.safetensors
  text_encoder/
    config.json
    model.safetensors
  tokenizer/
    tokenizer_config.json
    tokenizer.json

Key points:

  • model_index.json is the root map that tells FastVideo which components to load and which classes implement them.
  • Each component lives in its own folder with a config.json and weights.
  • Weights are usually in diffusion_pytorch_model.safetensors.

Note on tensor names:

Official checkpoints often use different state_dict names than FastVideo's module layout. We translate tensor names via the DiT arch config mapping (param_names_mapping under fastvideo/configs/models/dits/). This is similar in spirit to name-translation layers used in systems like vLLM and SGLang.

Example HF repo (Wan 2.1 T2V 1.3B Diffusers):

https://huggingface.co/Wan-AI/Wan2.1-T2V-1.3B-Diffusers/tree/main

Example model_index.json from that repo:

{
  "_class_name": "WanPipeline",
  "_diffusers_version": "0.33.0.dev0",
  "scheduler": [
    "diffusers",
    "UniPCMultistepScheduler"
  ],
  "text_encoder": [
    "transformers",
    "UMT5EncoderModel"
  ],
  "tokenizer": [
    "transformers",
    "T5TokenizerFast"
  ],
  "transformer": [
    "diffusers",
    "WanTransformer3DModel"
  ],
  "vae": [
    "diffusers",
    "AutoencoderKLWan"
  ]
}

How this maps to FastVideo:

  • WanPipeline -> fastvideo/pipelines/basic/wan/wan_pipeline.py
  • WanTransformer3DModel -> fastvideo/models/dits/wanvideo.py
  • AutoencoderKLWan -> fastvideo/models/vaes/wanvae.py
  • UMT5EncoderModel -> fastvideo/models/encoders/t5.py
  • T5TokenizerFast -> loaded via HF in fastvideo/models/loader/
  • UniPCMultistepScheduler -> loaded via Diffusers scheduler utilities
  • Pipeline defaults -> fastvideo/configs/pipelines/wan.py
  • Sampling defaults -> fastvideo/configs/sample/wan.py

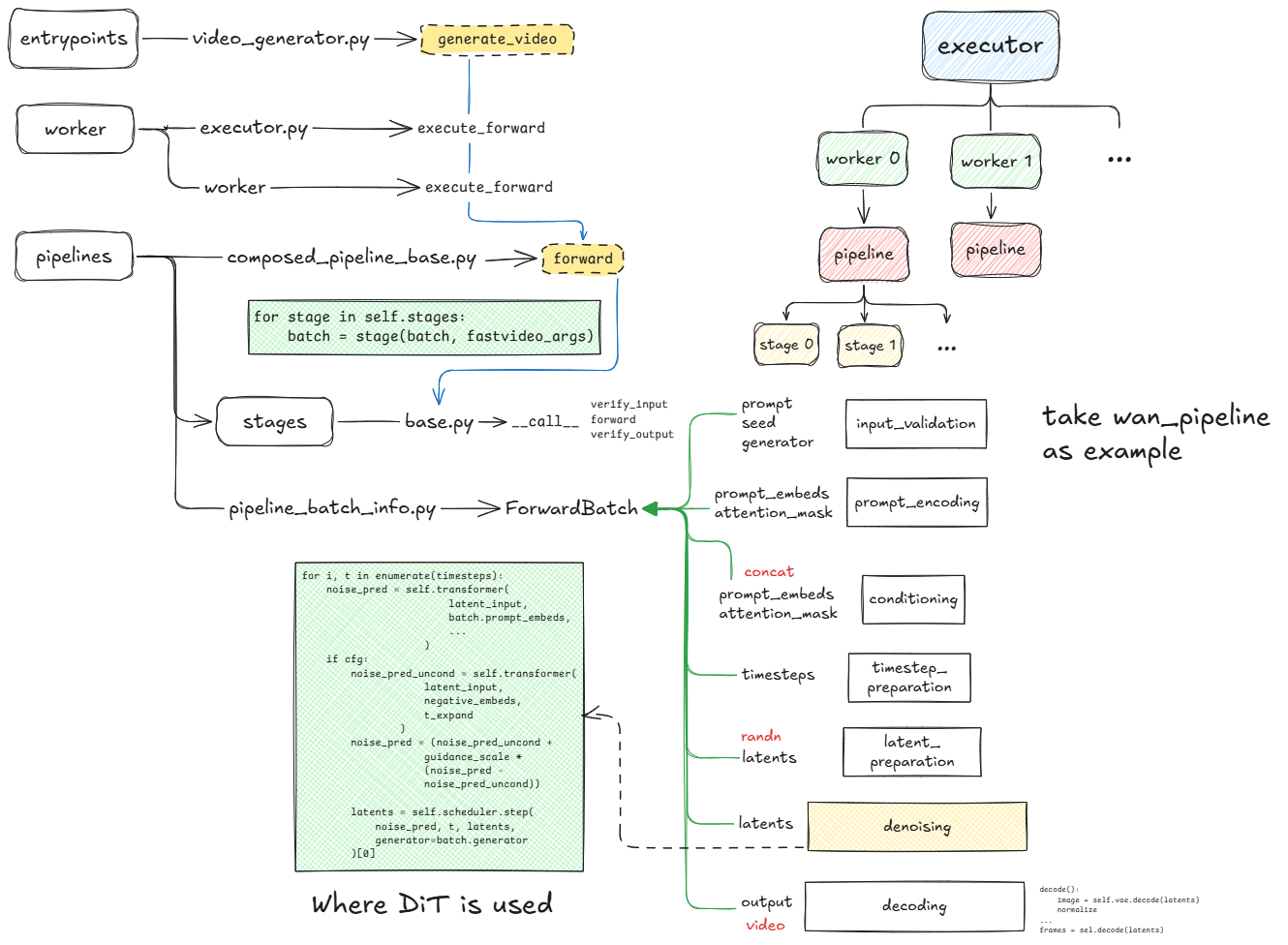

Pipeline system

  • fastvideo/pipelines/basic/* contains end-to-end pipelines for each model family.
  • fastvideo/pipelines/stages/* contains reusable, testable stages.
  • Pipelines subclass ComposedPipelineBase and declare required components via _required_config_modules.
  • ForwardBatch (in fastvideo/pipelines/pipeline_batch_info.py) carries prompts, latents, timesteps, and intermediate state across stages.

Model components

  • DiT models: fastvideo/models/dits/
  • VAEs: fastvideo/models/vaes/
  • Text/image encoders: fastvideo/models/encoders/
  • Schedulers: fastvideo/models/schedulers/
  • Upsamplers: fastvideo/models/upsamplers/
  • Optional audio models: fastvideo/models/audio/

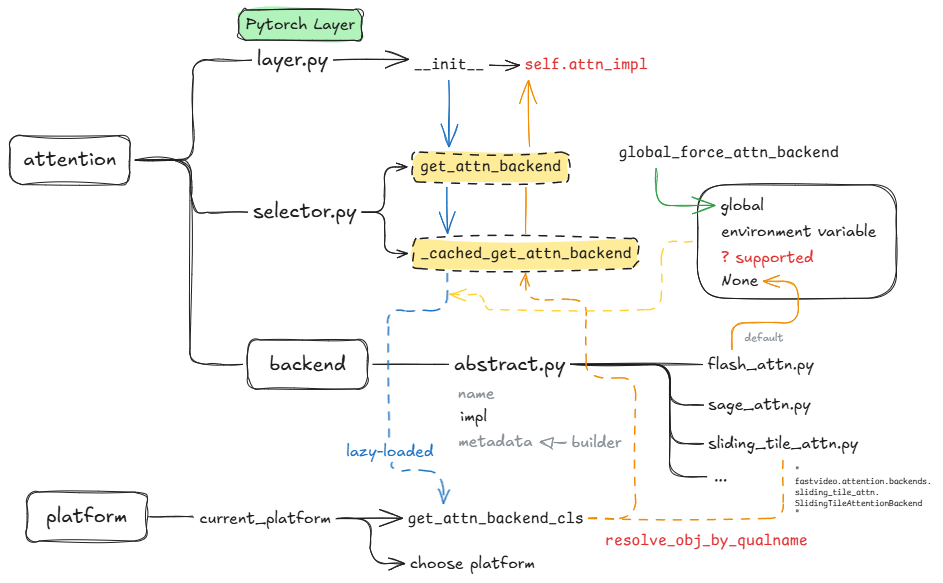

Attention and distributed execution

  • Attention backends live in fastvideo/attention/ and can be selected via FASTVIDEO_ATTENTION_BACKEND.
  • LocalAttention is used for cross-attention and most attention layers.
  • DistributedAttention is used for full-sequence self-attention in the DiT.
  • Tensor-parallel layers live in fastvideo/layers/.
  • Sequence/tensor parallel utilities live in fastvideo/distributed/.
